Counting scales

Counting scales

Counting scales

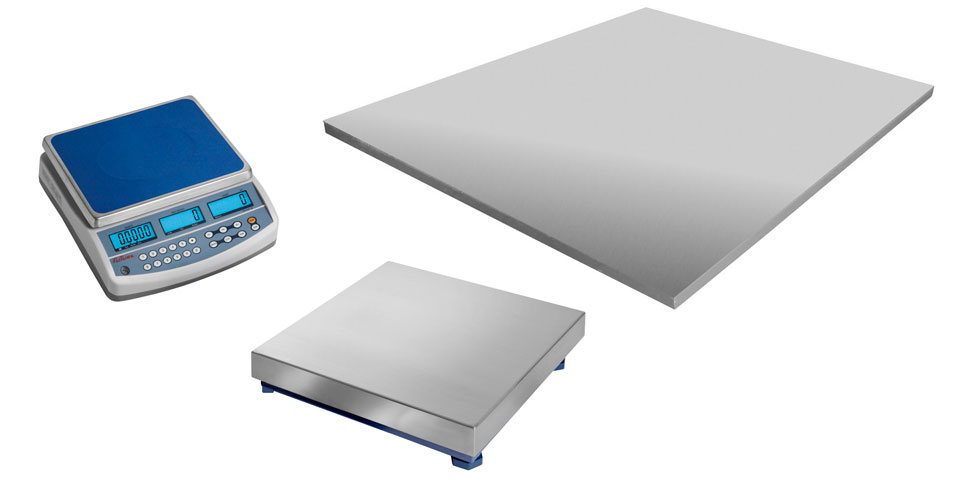

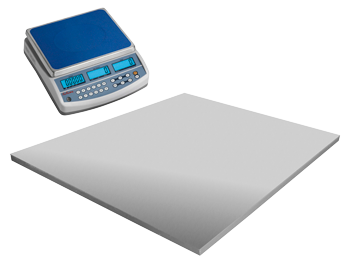

Counting system composed of benchmark scales for sampling and the platform for the pieces to be counted.

 Capacity of the benchmark scale Capacity and precision of the platform kgsensitivity gPlatform mm L x P x H
6Kg.  0,1g220x300
30kg 0,5g220x300
6kg/ 0,1g60kg/10g1g400x400 h.130
6kg/ 0,1g60kg/10g2g400x400 h.130
6kg/ 0,1g150kg/20g2g400x400 h.130
6kg/ 0,1g150kg/50g2g400x400 h.130
6kg150kg/50g5g600x600x150
6kg300kg 50g5g600x600x150
6kg300kg 100g5g600x600x150
6kg300kg 50g10g800x800 h.170
6kg600kg 100g10g800x800 h.170
6kg600 kg 200g10g800x800 h.170
30kg600 kg 200g20g1200X1200 h.110
30kg600kg 100g20g1200X1200 h.110
30kg1500 kg 500g20g1200X1200 h.110
30kg1500kg 200g20g1200X1200 h.110
30kg1500 kg 100g20g1200X1200 h.110
30kg1500 kg 500g50g1200X1500 h.110
30kg1500kg 200g50g1200X1500 h.110
30kg3000kg 1000g50g1200X1500 h.110
30kg3000kg 500g50g1200X1500 h.110
30kg1500 kg 500g100g1500X1500 h.110
30kg1500kg 200g100g1500X1500 h.110
30kg3000kg 1000g100g1500X1500 h.110
30kg3000kg 500g100g1500X1500 h.110

Main features

The reference scale is equipped with three backlit LCD displays (h.13mm), membrane keyboard with tactile effect and n.20 keys for tare deduction known, setting the average unit weight, sum, total pieces, etc., internal resolution 600.000divisions, 220Vac power supply, internal rechargeable battery, not usable for direct sales to the public, dimensions LxWxH mm.320 x 340 x 125 PLATE of the scale mm.230 x 300.

The Platforms sizes mm.400x400 - 600x600 - 800x800 are all equipped with an aluminum load cell OIML approved with IP65 protection, the plate is supplied as standard in stainless steel, The structure and with tubular painted oven, equipped with air bubble and feet for leveling, 2 meter cable for connection to the terminal.

The platforms sizes mm.1200x1200 and larger are painted with anti-scratch and anti-slip epoxy paint are equipped with four nickel-plated steel load cells approved OIML R60 C3 all with IP65 protection against dust and moisture, junction box in ABS easily removable for easy adjustment, 4mm non-slip sheet metal load floor welded one-piece, adjustable anti-shock feet, leveling bubble for leveling, supplied as standard with cable mm.5000.

Accessories for counting scales

In case of platform to be buried, order the kit for the installation.

  • Kit with frame, eyebolts to facilitate lifting and caps for 1200x1200 mm platform.
  • Frame kit, eyebolts to facilitate lifting and caps for platform mm.1200x1500
  • Frame kit, eyebolts to facilitate lifting and caps for platform mm.1500x1500
Top ↑
  • Thermal Printer 24 columns, roll mm.56 also adhesive
Top ↑
  • Battery for the use of the scale independent from the power line (20h of autonomy)
