Bilance per industria chimica - farmaceutica

Made in Switzerland

Semi-micro Balances 0.01mg

Model Capacity Readability Repeatability Linearity Pan Size (mm/inch)
EP 125SM 125 g 0.01 mg 0.02 mg ≤ 40 g 0.05 mg > 40 g 0.03 mg Ø 80 / 3.1
EP 225SM-DR 102 g / 225 g 0.01 mg / 0.1 mg 0.02 mg ≤ 40 g 0.05 mg > 40 g 0.03 / 0.1 mg Ø 80 / 3.1
Model Capacity Readability Repeatability Linearity Pan Size (mm/inch)
ES 125SM 125 g 0.01 mg 0.02 mg ≤ 40 g 0.05 mg > 40 g 0.03 mg Ø 80 / 3.1
ES 225SM-DR 102 g / 225 g 0.01 mg / 0.1 mg 0.02 mg ≤ 40 g 0.05 mg > 40 g 0.03 / 0.1 mg Ø 80 / 3.1
Options 360 EP 360 ES
Set for EC / OIML verification, fitted at factory, not verified, available only for balances with EC (/ OIML) Type approval 350-8671 350-8671
EC-Verification according to 90/384/ECC by Precisa (initial verification) available only for balances with EC (/ OIML) Type approval and SCS 350-8679 350-8679
SCS: Self Calibration System with clock, automatic on temperature change and real-time programmable standard standard
Clock standard standard

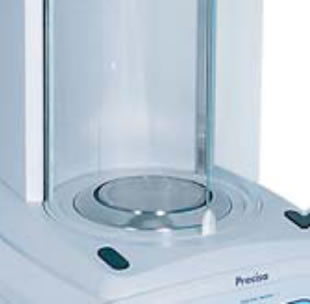

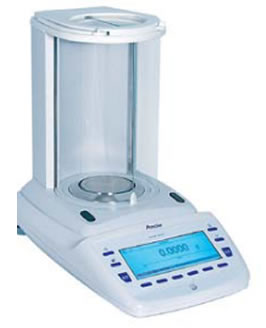

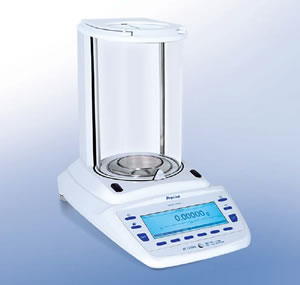

360 EP: Sensor-controlled auto-matic draft shield which can be operated from left or right

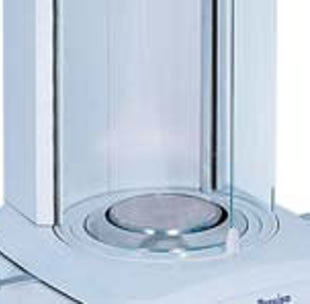

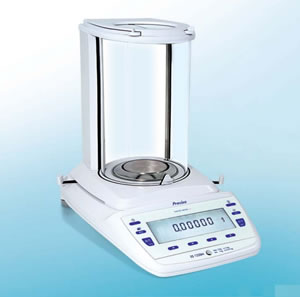

360 ES: Draft shield design provides optimum air-current suppression inside the weighing chamber

ACCESSORIES360 EP360 ES
Draft shield 360 automatic, height 260 mmstandard350-8657
Draft shield 360 automatic, height 180 mm350-8658350-8658
Draft shield 360 automatic, height 260 mm350-8659standard
Draft shield 360 automatic, height 180 mm350-8660350-8660
Podest for draft shield 360 350-8678350-8678
Draft shield 320XB, height 260 mm350-8519350-8519
Draft shield 320 XB, height 180 mm350-8518350-8518
Hook for weighing below the balance350-8527350-8527
Cable for balance used as reference balance350-8661350-8661
External USV accu power pack for continuous operation350-8662350-8662
Power supply 7 adapter with euro plug for balance with IP65 protection (80 V - 240 V)350-8372350-8372
density kit for 0.01 mg and 0.1 mg balances container size Ø= 75 mm, h=100 mm350-8636350-8636
Density kit solids only (without Glass body and Hook) for 0.01 mg and 0.1 mg balances container size Ø= 75 mm, h= 100 mm350-8637350-8637
Glass body 10 ccm for density determination of liquids350-7054350-7054
Downholder for samples with density < 1 g/cm3350-7194350-7194
Evaporation trap for pipette calibration complete, for 0.01mg and 0.1 mg balances 350-8633350-8633
Adapter to assemble Eppendorf humidity trap, for 0.01 mg and 0.1 mg balances 350-8634350-8634
Dust cover for the whole balance set of 20 pieces350-8676350-8676
Top ↑

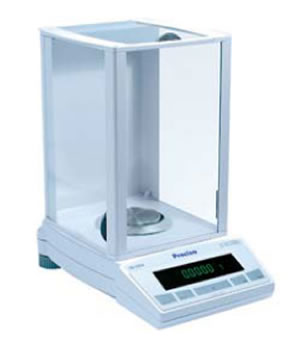

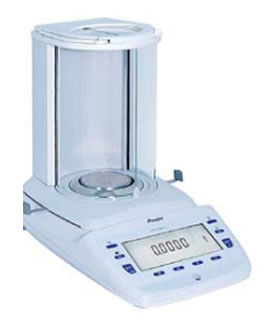

Analytical Balances 0.1 mg

Model Capacity Readability Repeatability Linearity Pan Size (mm/inch)
EP 120A120 g0.1 mg0.1 mg0.2 mgØ 90 / 3.5
EP 220A220 g0.1 mg0.1 mg0 2 mgØ 90 / 3.5
EP 320A320 g0.1 mg0.1 mg0.2 mgØ 90 / 3.5
EP 420A420 g0.1 mg0.15 mg0.4 mgØ 90 / 3.5
EP 520A *520 g0.1 mg0.15 mg0.4 mgØ 90 / 3.5
EP 420A-FR120 g - 420 g0.1 mg / 1 mg0.15 / 1 mg0.3 / 1 mgØ 90 / 3.5
Model Capacity Readability Repeatability Linearity Pan Size (mm/inch)
ES 120A120g0.1 mg0.1 mg0.2 mgØ 90 / 3.5
ES 220A220 g0.1 mg0.1 mg0.2 mgØ 90 / 3.5
ES 320A320 g0.1 mg0.1 mg0.2 mgØ 90 / 3.5
ES 420A420 g0.1 mg0.15 mg0.4 mgØ 90 / 3.5
ES 520A *520 g0.1 mg0.15 mg0.4 mgØ 90 / 3.5
ES 420A-FR120 g - 420 g0.1 mg / 1 mg0.15 / 1 mg0.3 / 1 mgØ 90 / 3.5
Model Capacity Readability Repeatability Linearity Pan Size (mm/inch)
LX 120A120g0.1 mg0.1 mg0.2 mgØ 90 / 3.5
LX 220A220g0.1 mg0.1 mg0.2 mgØ 90 / 3.5
LX 320A320g0.1 mg0.1 mg0.2 mgØ 90 / 3.5
Model Capacity Readability Repeatability Linearity Pan Size (mm/inch)
XB 120A120g0.1 mg0.1 mg0.2 mgØ 80 / 3.1
XB 220A220g0.1 mg0.1 mg0.2 mgØ 80 / 3.1
Options 360 EP 360 ES 321 LX 320 XB
Set for EC / OIML verification, fitted at factory, not verified, available only for balances with EC (/ OIML) Type approval 350-8671 350-8671 350-8684 350-8528
EC-Verification according to 90/384/ECC by Precisa (initial verification) available only for balances with EC (/ OIML) Type approval and SCS 350-8679 350-8679 350-8685 350-8587
SCS: Self Calibration System with clock, automatic on temperature change and real-time programmable standard standard available available
Clock standard standard standard 350-8532

ACCESSORIES

360 EP: Sensor-controlled auto-matic draft shield which can be operated from left or right

360 ES: Draft shield design provides optimum air-current suppression inside the weighing chamber

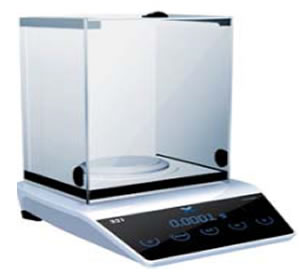

321 LX: Ergonomically designed draft shield provides optimum user-control

320 XB: Simple draft shield can be operated using either the left or right hand

Accessories 360 EP 360 ES 321 LX 320 XB
Draft shield 360 automatic, height 260 mm standard 350-8657 - -
Draft shield 360 automatic, height 180 mm 350-8658 350-8658 - -
Draft shield 360 manual, height 260 mm 350-8659 standard - -
Draft shield 360 manual, height 180 mm 350-8660 350-8660 - -
Podest for draft shield 360 350-8678 350-8678 - -
Draft shield 321 LX, height 260 mm - - 350-8689 -
Draft shield 320 XB, height 260 mm 350-8519 350-8519 - standard
Draft shield 320 XB, height 180 mm 350-8518 350-8518 - 350-8518
Hook for weighing below the balance 350-8527 350-8527 350-8527 350-8527
Cable for balance used as reference balance 350-8661 350-8661 350-8661 350-8534
External USV accu power pack for continuous operation 350-8662 350-8662 350-8662 350-8662
Power supply / Adapter with Euro plug for balances with IP65 protection (80 V - 240 V) 350-8372 350-8372 350-8372 350-8372
Density kit for 0.01 mg and 0.1 mg balances Container size Ø= 75 mm, h= 100 mm 350-8636 350-8636 350-8636 350-8636
Density kit solids only (without Glass body and Hook) for 0.01 mg and 0.1 mg balan- ces. Container size Ø= 75 mm, h= 100 mm 350-8637 350-8637 350-8637 350-8637
Glass body 10ccm for density determination of liquids 350-7054 350-7054 350-7054 350-7054
Downholder for samples with density < 1 g/cm3 350-7194 350-7194 350-7194 350-7194
Evaporation trap for pipette calibration complete, for 0.01 mg and 0.1 mg balances 350-8633 350-8633 350-8633 350-8633
Adapter to assemble Eppendorf Humidity Trap, for 0.01 mg and 0.1 mg balances 350-8634 350-8634 350-8634 350-8634
Dust cover for the whole balance, set of 20 pieces 350-8676 350-8676 350-8686 350-8589
Dust cover 320 over display, set of 20 pieces - - - 350-8590
Night cover 320 for balance without draft shield - - - 350-4097
Night cover 320 for balance with draft shield - - - 350-4107
Top ↑

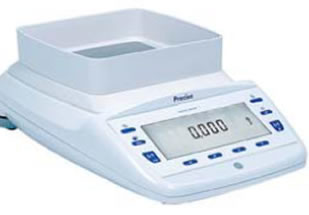

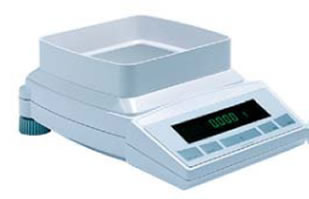

Precision Balances 0.001 g

Model Capacity Readability Repeatability Linearity Pan Size (mm)
EP 320M 320 g 1 mg 1 mg 1.5 mg 135 x 135
EP 620M 620 g 1 mg 1 mg 1.5 mg 135 x 135
EP 920M 920 g 1 mg 1 mg 1.5 mg 135 x 135
EP 1220M 1 220 g 1 mg 1 mg 2 mg 135 x 135
EP 2220M 2 220 g 1 mg 1 mg 2 mg 135 x 135
EP 620M-FR 120 g - 620 g 1 mg / 10 mg 1 mg / 10 mg 1.5 mg / 10 mg 135 x 135
EP 1220M-FR 240 g - 1 220 g 1 mg / 10 mg 1 mg / 10 mg 1.5 mg / 10 mg 135 x 135
Capacity Readability Repeatability Linearity Pan Size (mm)
320 g 1 mg 1 mg 1.5 mg 135 x 135
620 g 1 mg 1 mg 1.5 mg 135 x 135
920 g 1 mg 1 mg 1.5 mg 135 x 135
1 220 g 1 mg 1 mg 2 mg 135 x 135
2 220 g 1 mg 1 mg 2 mg 135 x 135
120 g - 620 g 1 mg / 10 mg 1 mg / 10 mg 1.5 mg / 10 mg 135 x 135
240 g - 1 220 g 1 mg / 10 mg 1 mg / 10 mg 1.5 mg / 10 mg 135 x 135
Capacity Readability Repeatability Linearity Pan Size (mm)
320 g 1 mg 1 mg 1.5 mg 135 x 135
620 g 1 mg 1 mg 1.5 mg 135 x 135
920 g 1 mg 1 mg 1.5 mg 135 x 135
1 220 g 1 mg 1 mg 2 mg 135 x 135
Capacity Readability Repeatability Linearity Pan Size (mm)
160 g 1 mg 1 mg 1.5 mg 135 x 135
320 g 1 mg 1 mg 1.5 mg 135 x 135
620 g 1 mg 1 mg 1.5 mg 135 x 135
Top ↑

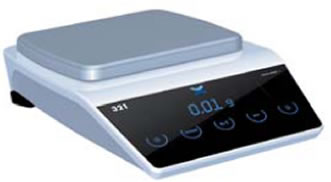

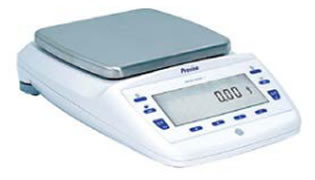

Precision Balances 0.01 g

Model Capacity Readability Repeatability Linearity Pan Size (mm)
EP 1200C 1 200 g 0.01 g 0.01 g 10 mg 200 x 200
EP 2200C 2 200 g 0.01 g 0.01 g 15 mg 200 x 200
EP 4200C 4 200 g 0.01 g 0.01 g 15 mg 200 x 200
EP 6200C 6 200 g 0.01 g 0.01 g 15 mg 200 x 200
EP 8200C 8 200 g 0.01 g 0.01 g 15 mg 200 x 200
EP 6200C-FR 2 200 g - 6 200 g 0.01 g / 0.1 g 0.01 g / 0.02 g 15 mg / 0.02 g 200 x 200
EP 8200C-DR 3 200 g / 8 200 g 0.01 g / 0.1 g 0.01 g / 0.03 g 15 mg / 0.05 g 200 x 200
Model Capacity Readability Repeatability Linearity Pan Size (mm)
LX 620C 620 g 0.01 g 0.005 g 10 mg 200 x 200
LX 1200C 1 200 g 0.01 g 0.01 g 10 mg 200 x 200
LX 2200C 2 200 g 0.01 g 0.01 g 15 mg 200 x 200
LX 4200C 4 200 g 0.01 g 0.01 g 15 mg 200 x 200
LX 6200C 6 200 g 0.01 g 0.01 g 15 mg 200 x 200
Model Capacity Readability Repeatability Linearity Pan Size (mm)
LX 620C 620 g 0.01 g 0.005 g 10 mg 200 x 200
LX 1200C 1 200 g 0.01 g 0.01 g 10 mg 200 x 200
LX 2200C 2 200 g 0.01 g 0.01 g 15 mg 200 x 200
LX 4200C 4 200 g 0.01 g 0.01 g 15 mg 200 x 200
LX 6200C 6 200 g 0.01 g 0.01 g 15 mg 200 x 200
Model Capacity Readability Repeatability Linearity Pan Size (mm)
"XB 620C 620 g 0.01 g 5 mg 10 mg 170 x 170
XB 2200C 2 200 g 0.01 g 0.01 g 15 mg 170 x 170
XB 3200C 3 200 g 0.01 g 0.01 g 15 mg 170 x 170
XB 4200C * 4 200 g 0.01 g 0.01 g 15 mg 170 x 170
XB 6200C * 6 200 g 0.01 g 0.01 g 15 mg 170 x 170
Capacity Readability Repeatability Linearity Pan Size (mm)
Options 360 EP 360 ES 321 LX 320 XB
Set for EC / OIML verification, fitted at factory, not verified, available only for balances with EC (/ OIML) Type approval 350-8671 350-8671 350-8684 350-8528
EC-Verification according to 90/384/ECC by Precisa (initial verification) available only for balances with EC (/ OIML) Type approval and SCS 350-8679 350-8679 350-8585 350-8587
SCS: Self Calibration System with clock, automatic on temperature change and real-time programmable standard standard available available
Clock standard standard standard 350-8532
Protection IP65: protection against ingress of dust and low pressure water jets, fitted at factory, not all types available 350-8681 350-8681 350-8688 350-8649

ACCESSORIES

Accessories 360 EP 360 ES 321 LX 320 XB
Draft shield 320 XB, height 260 mm, requires adapter* 350-8519 350-8519 - 350-8519
Draft shield 320 XB, height 180 mm, requires adapter* 350-8518 350-8518 - 350-8518
*adapter for 1 mg, 0.01 g balances 350-7402 350-7402 350-7402 350-7402
Draft shield mg, glass with cover 320-8504 320-8504 320-8504 320-8504
Hook for weighing below the balance 350-8527 350-8527 350-8527 350-8527
Cable for balance used as reference balance 350-8661 350-8661 350-8661 350-8534
External USV accu power pack for continuous operation 350-8662 350-8662 350-8662 350-8662
Power supply / Adapter with Euro plug for balances with IP65 protection (80 V - 240 V) 350-8372 350-8372 350-8372 350-8372
Glass body 10 ccm for density determination of liquids 350-7054 350-7054 350-7054 350-7054
Animal weighing bowl complete for 0.01g balances 350-8551 350-8551 350-8551 350-8550
Animal weighing bowl complete for 0.1 g and 1 g balances 350-8551 350-8551 350-8551 350-8551
Dust cover for the whole balance, set of 20 pieces 350-8663 350-8663 350-8686 350-8589
Dust cover 320 over display, set of 20 pieces - - - 350-8590
Night cover 320 for balance without draft shield - - - 350-4097
Night cover 320 for balance with draft shield - - - 350-4107

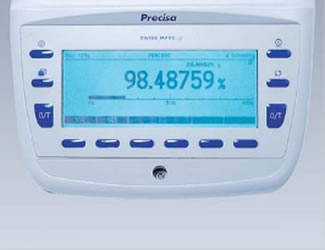

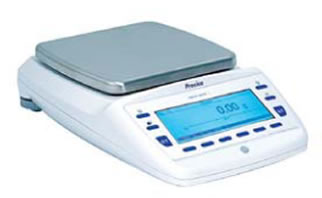

Series EP: large, high-resolution bright graphic-display for

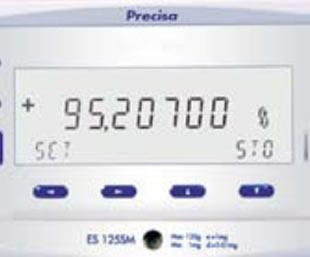

Series ES: easy-to-read display with chemically-resistant sealed keypad

RS 232 and USB interfaces are included as standard - wireless, Bluetooth, USB Host etc are optional

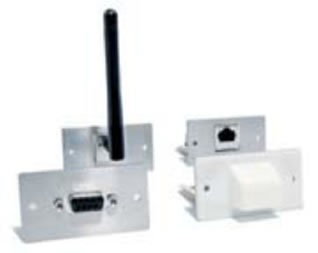

Series 360, slide-in modules 360 EP 360 ES

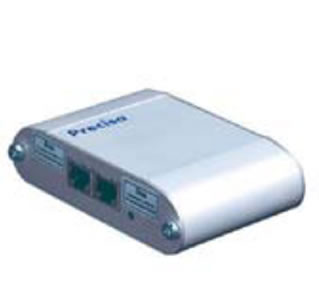

Precisa BUS converter, enables connection to almost all Precisa BUS accessories - 350-8664
USB Host 350-8665 -
Ethernet wired 350-8666 -
Ethernet wireless 350-8667 -
Bluetooth 350-8668 -
PS 2 Female & RS 232 DB9 Female 350-8670 -
Top ↑

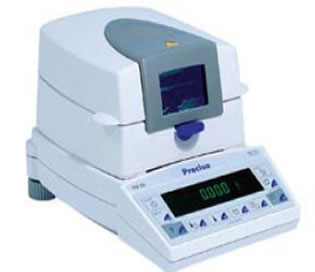

Moisture Analyzers

Model Capacity Readability Repeatability Linearity Pan Size (mm/inch)
EM 120-HR 124 g 0.1 mg / 0.001% 1 g / 0.1% 10 g / 0.01 % 0.2 mg Ø 100 / 3.9
Model Capacity Readability Repeatability Linearity Pan Size (mm/inch)
XM 120-HR 124 g 0.1 mg / 0.001% 1 g / 0.1% 10 g / 0.01 % 0.2 mg Ø 100 / 3.9
Model Capacity Readability Repeatability Linearity Pan Size (mm/inch)
XM 60-HR 124 g 0.1 mg / 0.001% 1 g / 0.1% 10 g / 0.01 % 0.2 mg Ø 100 / 3.9
XM 60 124 g 1 mg / 0.01 % 1 g / 0.2% 10 g / 0.02 % 1.5 mg Ø 100 / 3.9
XM 66 310 g 1 mg / 0.01 % 1 g / 0.2% 10 g / 0.02 % 1.5 mg Ø 100 / 3.9
Model Capacity Readability Repeatability Linearity Pan Size (mm/inch)
XM 50 52 g 1 mg / 0.01 % 1 g / 0.5 % 10 g / 0.05% 3.0 mg Ø 100 / 3.9

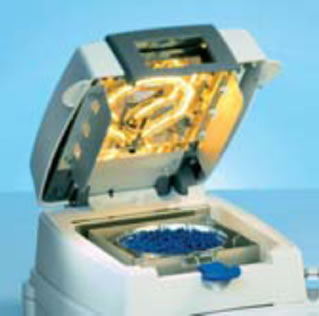

Choice of radiation heat-source:halogen, quartz infrared or dark infrared

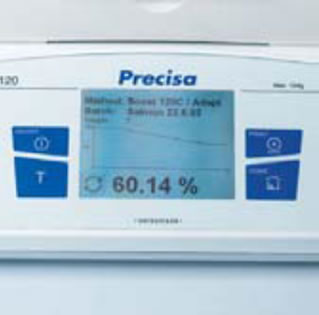

Graphic-display for easy userguidance and real-time results

Easy access sample-holder

ACCESSORIES
Accessories EM 120-HR XM 120-HR XM 60-HR XM 60 XM 66
Aluminum dishes, Ø 100 mm, (box with 80 pcs.) 350-2032 350-2032 350-2032 350-2032 350-2032
Fiberglass-filters, Ø 90 mm, (box with 80 pcs.) 350-4130 350-4130 350-4130 350-4130 350-4130
Temperature sensor plate (Sensor - type K) 350-8580 350-8580 350-8580 350-8580 350-8580
Temperature calibration set (Sensor - type K) with certificate 350-8585 350-8585 350-8585 350-8585 350-8585
Temperature calibration set (Sensor - type K) without certificate 350-8584 350-8584 350-8584 350-8584 350-8584
Stainless steel dish, reusable, Ø 100 mm, (1 pcs.) 330-2018 330-2018 330-2018 330-2018 330-2018
Calibration weight, 50 g, E2 350-8241 350-8241 350-8241 350-8241 350-8241
Dust cover 320 over display, set of 20 pieces - 350-8590 350-8590 350-8590 350-8590
XM Filter 350-8687 350-8687 350-8687 350-8687 350-8687
Slide-in modules EM 120-HR
USB Host 350-8665
Ethernet wired 350-8666
Ethernet wireless 350-8667
Bluetooth 350-8668
PS 2 Female & RS 232 DB9 Female 350-8670
Top ↑

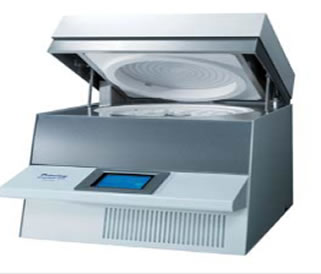

Moisture Analysis and Ash Determination Systems

Model Capacity Readability Repeatability Temp. Range Crucibels
prepASH 229 120 g 0.1 mg / 0.01 ‰ 1 g / 0.2 ‰ 10 g / 0.02 ‰ 50 - 1 000 °C 29 pcs. / 35 ml
prepASH 219 120 g 0.1 mg / 0.01 ‰ 1 g / 0.2 ‰ 10 g / 0.02 ‰ 50 - 1 000 °C 19 pcs. / 35 ml
prepASH 212 120 g 0.1 mg / 0.01 ‰ 1 g / 0.2 ‰ 10 g / 0.02 ‰ 50 - 1 000 °C 12 pcs. / 40 ml

Options

Options prepASH 229 prepASH 219 prepASH 212 Recommendations
Standard applications Sulphuric acid applications
3 inputs gas flow control unit for N2, O2 and air 340-8502 340-8502 340-8502 yes yes
prepSTATION
- prepSTATION unit
- EP 120A Analytical balance
- Date cable RJ45 / 0.7 m for the connection of prepSTATION with balance		 340-9010 340-9010 340-9010 yes yes
Condensation-Absorption-Unit B-414 Acid scrubber module for e.g. sulfuric acid 340-9001 340-9001 340-9001 no essential
Condensation-Absorption-Connection-Set 340-9002 340-9002 340-9002 no essential
Accessories prepASH 229 prepASH 219 prepASH 212 Recommendations
Standard applications Sulphuric acid applications
Turn-table holder 340-8012 340-8012 340-8012 yes recommended
Crucible-tweezers PN 3950-099 PN 3950-099 PN 3950-099 standard standard
Crucible-tweezers for crucible-lid handling 340-7090 340-7090 340-7090 - -
Turn-table for 29/19 samples, „Volatiles“ for prepASH 229 and prepASH 219 340-4065 340-4065 - yes no
Turn-table for 29/19 samples, SiC for prepASH 229 and prepASH 219 standard standard - standard 229, 219 standard 229, 219
Turn-table for 12 samples, SiC for prepASH 229, prepASH 219 and prepASH 212 340-4072 340-4072 standard standard 212 standard 212
Crucible, silicate ceramic, set of 5 pieces use with turn-table 29/19 340-8030 340-8030 340-8030 standard 229, 219 standard 229, 219
Crucible, Al203, set of 5 pieces use with turn-table 29/19 340-8031 340-8031 340-8031 yes yes
Crucible for use with lid Al203, set of 5 pieces use with turn-table 29/19 and crucible-lid 340-8033 340-8032 340-8032 340-8032 yes yes
Crucible-lid, Al203, set of 5 pieces use with turn-table 29/19 and crucible 340-8032 340-8033 340-8033 340-8033 yes yes
Standard Crucible, silicate ceramic, set of 5 pieces use only with turn-table 12 and adapter 340-8035 340-8034 340-8034 standard standard 212 standard 212
Adapter for standard crucible, silicate ceramic, set of 5 pieces use only with turn-table 12 and standard crucible 340-8034 or other crucible available from the market 340-8035 340-8035 standard standard 212 standard 212
Top ↑

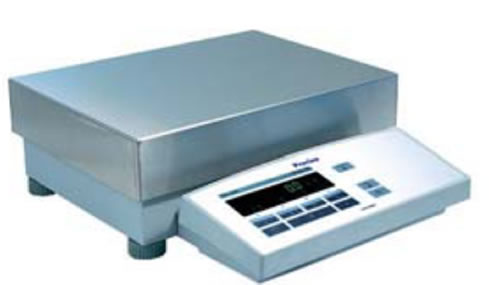

Industrial Scales

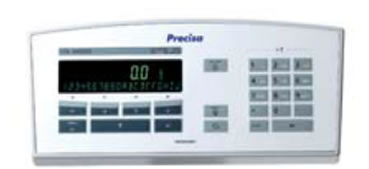

User-friendly multi-application indicator (IBK)

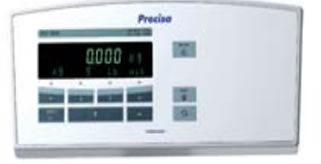

Indicator with alpha-numeric input and manual tare (ITK)

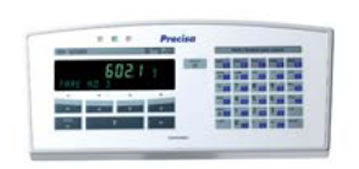

Indicator with integrated SmartBox® (ISK) with Applications Counting or finished goods packing Control, FPVO

Model Capacity Readability Repeatability Linearity Pan Size (mm)
IBK 12000D 12 100 g 0.1 g 0.1 g 0.2 g 400 x 300
IBK 18000D 18 100 g 0.1 g 0.1 g 0.2 g 400 x 300
IBK 24000D 24 100 g 0.1 g 0.1 g 0.2 g 400 x 300
IBK 34000D 34 100 g* 0.1 g 0.1 g 0.2 g 400 x 300
IBK 34000D-DR 12 100 / 34 100 g* 0.1 g / 1 g 0.1 g 0.2 g 400 x 300
IBK 34000D-FR 12 100 - 34 100 g* 0.1 g / 1 g 0.1 g 0.2 g 400 x 300
IBK 20000G 20 100 g 1 g 0.5 g 1 g 400 x 300
IBK 30000G 30 100 g 1 g 0.5 g 1 g 400 x 300
IBK 40000G 40 100 g 1 g 0.5 g 1 g 400 x 300
IBK 60000G 60 100 g 1 g 1 g 1.5 g 400 x 300
Top ↑

Special products

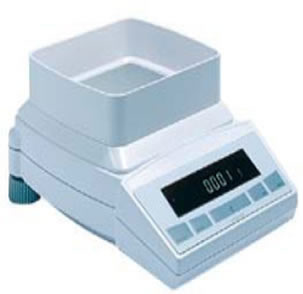

GOLD/CARAT BALANCES SERIES 320XB

Model Capacaity Readability Repeatability Linearity Pan Size (mm/inch)
XB 600M-C 600 ct / 120 g 0.001 ct / 0.001 g 0.001 ct / 0.001 g 0.001 ct / 0.001 g Ø 80 / 3.1
XB 1100M-C 1 100 ct / 220 g 0.001 ct / 0.001 g 0.001 ct / 0.001 g 0.001 ct / 0.001 g Ø 80 / 3.1
XB 3100C-C 3 100 ct / 620 g 0.01 ct / 0.01 g 0.01 ct / 0.005 g 0.01 ct / 0.01 g 135 x 135
XB 620C-G 620 g 0.01 g 0.01 g 0.01 g 170 x 170
XB 2200C-G 2 200 g 0.01 g 0.01 g 0.015 g 170 x 170
XB 4200C-G 4 200 g 0.01 g 0.01 g 0.01g 170 x 170

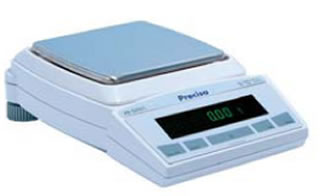

EDUCATION Series 320 XE

"Model Capacaity Readability Repeatability Linearity Pan Size (mm/inch)
XE 220A 220 g 0.0001 g 0.1 mg 0.2 mg Ø 80 / 3.1
XE 320M 320 g 0.001 g 1 mg 1.5 mg 135 x 135
XE 1200C 1200 g 0.01 g 0.01 g 10 mg 170 x 170
XE 2200C 2200 g 0.01 g 0.01 g 15 mg 170 x 170
XE 6200D 6200 g 0.1 g 0.05 g 0.1 g 200 x 200
Common Accessories 360 EP 360 ES 321 LX 320 XB

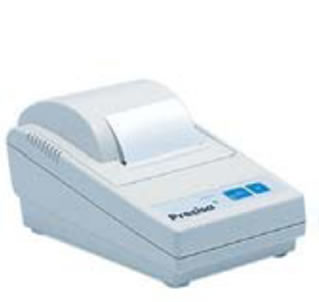

Printer CBM910 230V - with cable and paper roll 350-8379 350-8379 350-8379 350-8363
Printer CBM910 115V - with cable and paper roll 350-8380 350-8380 350-8380 350-8370
Paper roll for Printer CMB910 350-8366 350-8366 350-8366 350-8366
Ribbon for Printer CBM910 350-8367 350-8367 350-8367 350-8367
Multiplexor for up to 7 balances of Series 165, 320, 321, 490 and 360 for serial (RS232) data transmission to PC or Printer 350-8513 350-8513 350-8513 350-8513
Data cable RJ45 / 0.75 m - - - 350-8525
Data cable RJ45 / 1.5 m - - - 350-8520
Data cable RJ45 / 3 m - - - 350-8521
Adapter RJ45 / DB9 Female (PC) 350-8522 350-8522 350-8522 350-8522
Adapter RJ45 / DB25 Male (Printer) 350-8524 350-8524 350-8524 350-8524
Data cable RJ45 / DB9 Female 1.5 m (PC) - - - 350-8557
Data cable RJ45 / DB25 Male 1.5 m (Printer) - - - 350-8559
Data cable DB9 Male / DB9 Female 1.5 m (PC) 350-8672 350-8672 350-8672 -
Data cable DB9 Male / DB25 Male 1.5 m (Printer) 350-8673 350-8673 350-8673 -
Data cable DB9 Female / DB9 Female 1.5 m (PC) - - - -
Data cable DB9 Female / DB25 Male 1.5 m (Printer) - - - -
External USV accu power pack, for continuous operation 350-8662 350-8662 350-8662 350-8662
Anti-theft device 350-8555 350-8555 350-8555 350-8555
Diamond weighing pan 350-8322 350-8322 350-8322 350-8322
Precisa BUS Accessories 360 EP 360 ES 321 LX 320 XB
Remote / secondary display free-standing with cable 1.5m - 350-8504* 350-8504 350-8504
Remote / secondary display mounted to the balance - 350-8505* 350-8505 350-8505
Remote / secondary display mounted to the wall with cable 3m - 350-8516* 350-8516 350-8516
Interface RS232 for data transmission:
- to PC, Printer or Barcode-Printer
- from Barcode Reader (350-8856) or Reference-Balance		 - 350-8506* 350-8506 350-8506
Interface 20mA current loop passive - 350-8526* 350-8526 350-8526
Analog output -10V... +10V (Resolution 10mV) - 350-8508* 350-8508 350-8508
Ethernet Interface, Wired - 350-8573* 350-8573 350-8573
Ethernet Interface, Wireless - 350-8588* 350-8588 350-8588
Signal Lamp, indicator with 3 lamps, green / red / yellow on demand 350-8510* 350-8510 350-8510
Horn for Signal Lamp 350-8533 350-8533* 350-8533 350-8533
Input / Output module with 6 TTL Inputs / 8 Relay Outputs on demand 350-8509* 350-8509 350-8509
CCE-Bar code scanner BCS5040 with push button and plug to be connected to the Interface RS232 350-8506 (Connector DB25) - 350-8856 350-8856 350-8856
SmartBox® Applications 360 EP 360 ES 321 LX 320 XB
SmartBox® Counting - 350-8511-011* 350-8511-011 350-8511-011
SmartBox® Finished Goods Packing Control, FPVO - 350-8511-012* 350-8511-012 350-8511-012
CCE-Bar code scanner BCS5040 with push button and plug to be connected to the SmartBox® (Connector RJ45) - 350-8531 350-8531 350-8531
